product Overview

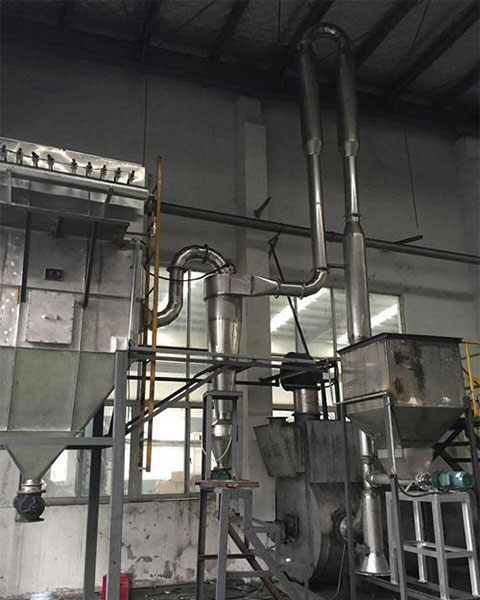

  QG series pulse airflow dryerIt is a large-scale drying equipment. It adopts the principle of instantaneous drying and uses the rapid movement of heat-carrying air to drive the wet material and suspend the wet material in the hot air. This strengthens the entire drying process and improves the rate of heat and mass transfer. Almost all unbound moisture can be removed from materials dried by air flow (For example, the water content of starch and other materials is ≤40%, and the output of finished products can be 13.5%), and the dried materials will not deteriorate, and the output will be significantly improved compared with that of ordinary dryers. Users can achieve high economic benefits in the short term.
application range
  The company produces and manufactures QG airflow drying equipment, introduces advanced American technology equipment, and has reached a good level through unique design. The entire equipment of this product has high degree of automation, low investment, low energy consumption, relatively small manpower and factory area, and has a wide range of versatility. It is an ideal modern equipment.
product features
  QG airflow dryer is suitable for drying and dehumidifying powdery materials in pharmaceutical, chemical, food, building materials, plastics and other industries, such as starch, fish meal, salt, distiller's grains, feed, gluten, plastic resin, mineral powder, coal powder, sugar chlorous acid, A·S·C benzoic acid, 2.3·acid, polychloroacetic acid, polypropylene, sodium sulfate, sodium metabisulfite and other materials.
  Our company consults with the outside world on airflow drying equipment and designs and manufactures non-stereotyped airflow dryers on our behalf.
technical specifications

JG series airflow dryer

working principle

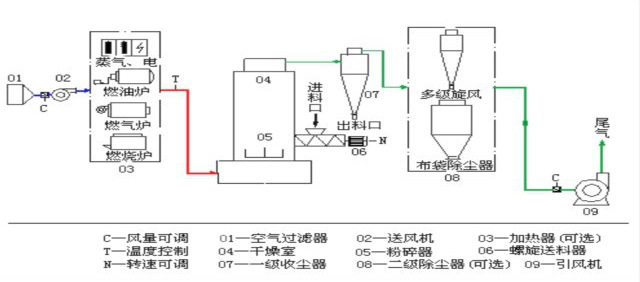

  JG series airflow dryerIt can quickly remove water (mainly surface water) from easily dehydrated particles and powdery materials. In airflow drying, the quality of the dried finished product is well controlled due to the short residence time of the material in the dryer. Our factory's enhanced airflow drying consists of adding a set of intensifiers whose speed can be infinitely adjusted to the basic type. The wet material enters the intensifier through the screw feeder and is fully mixed with the hot airflow. Under the crushing and advancement of the rapidly rotating hammer knife, the material is broken into fine particles, which move towards the outlet while drying,^Then, under the attraction of wind, enter the drying pipe for further uniform drying. Wet and heavy particles that cannot be attracted by the wind continue to be crushed and dried until they can be sucked up by the wind and enter the drying pipe.
main use
  This machine is especially suitable for materials with relatively large moisture content, wet materials that are paste and cannot be dried by other airflow drying methods, such as: Copolymer of white carbon black, vinyl acetate and vinyl chloride, cellulose acetate, catalyst, C.M.C, CT-1 resin, gypsum, electrolytic manganese dioxide, ammonium anthraquinone sulfonate, fluorite, diatomite, silica gel catalyst, bone meal, high soil, potassium perchlorate ammonium sulfonate drugs, synthetic resins, activated gluten, activated clay, chemical filter cake, rutile diamond powder, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphated starch, dye, Calcium citrate, coal slurry, flour shaped bread feeding rice bran, clay, clay cement, urea, bentonite, spherical clay, aluminum hydroxide, barium hydroxide, calcium lactate, food, washed high soil, cyanuric acid, gypsum slurry, lime, biological products, carbon black, calcium carbonate slurry, sludge residue, organic chemicals aluminum stearate, iron oxide, organic fuels, corn protein feed, damp mud, mica powder, pharmaceuticals, pigments, heavy pulp, distillers 'grains residue, etc.

technical specifications

FG series airflow dryer

working principle

  FG series airflow dryerThe working principle of "The drying of wet materials" is to divide the drying of wet materials into two steps. The raw materials are first subjected to primary positive pressure drying by a mixture of secondary drying tail gas and supplementary hot air. The used high temperature and low humidity tail gas is discharged out of the machine. The dried semi-finished products are subjected to secondary negative pressure drying by fresh hot air. The dried finished product is metered and packaged. The used high-temperature and low-humidity tail gas is used for primary drying, thereby completing a good circular drying process. The amount of supplementary hot air can be adjusted at will as needed, so the machine is widely applicable.
Adapt materials
  This equipment is widely used for drying powdery and granular materials in food, chemical, medicine, building materials and other industries. The products that have been dried with this series include: starch, glucose, fishery powder, granulated sugar, sugar, wine trough, feed, gluten, plastic resin, coal powder, dyes, etc.
technical specifications
