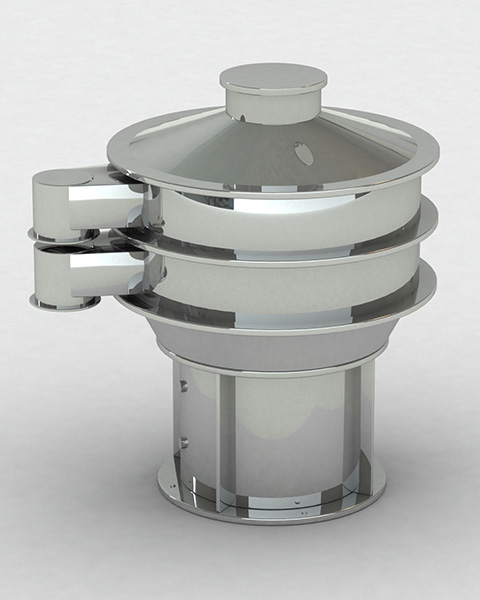

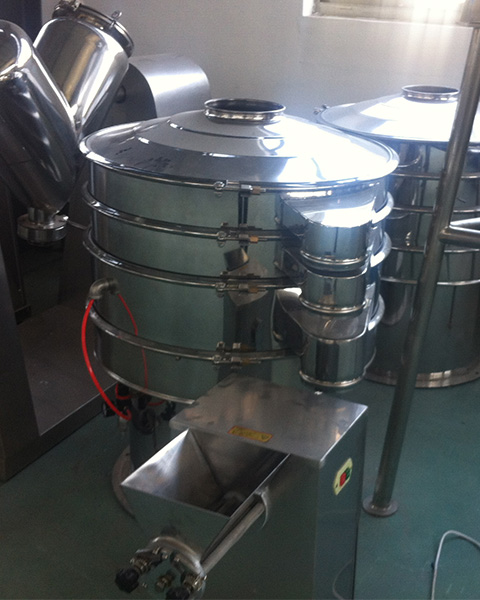

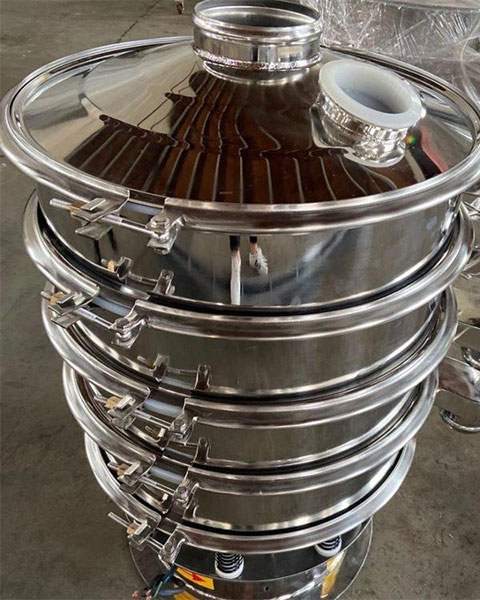

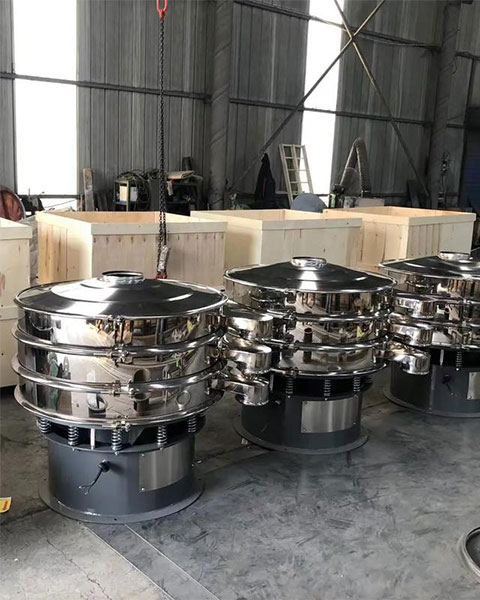

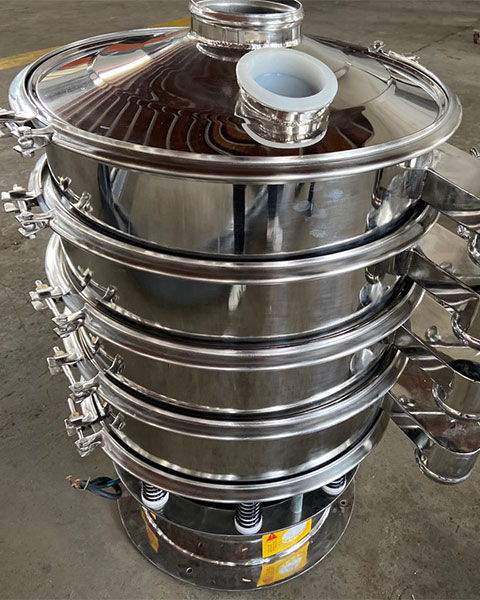

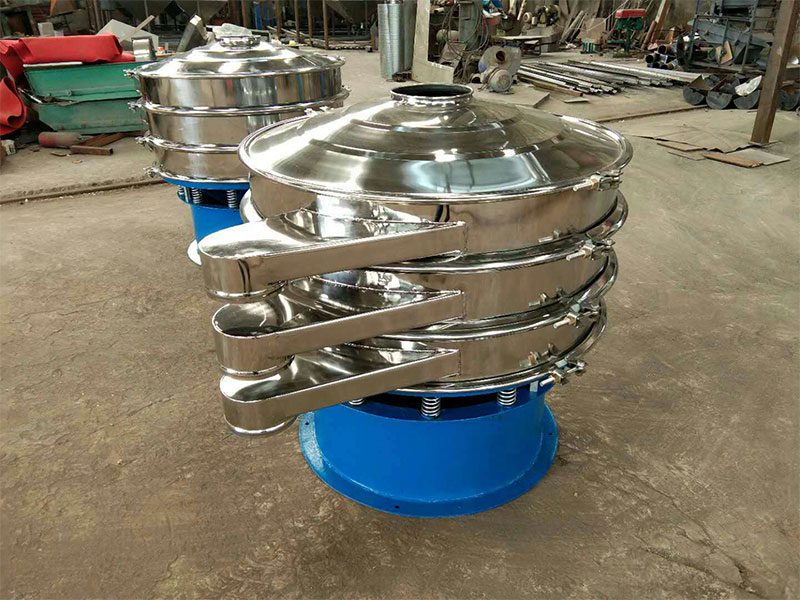

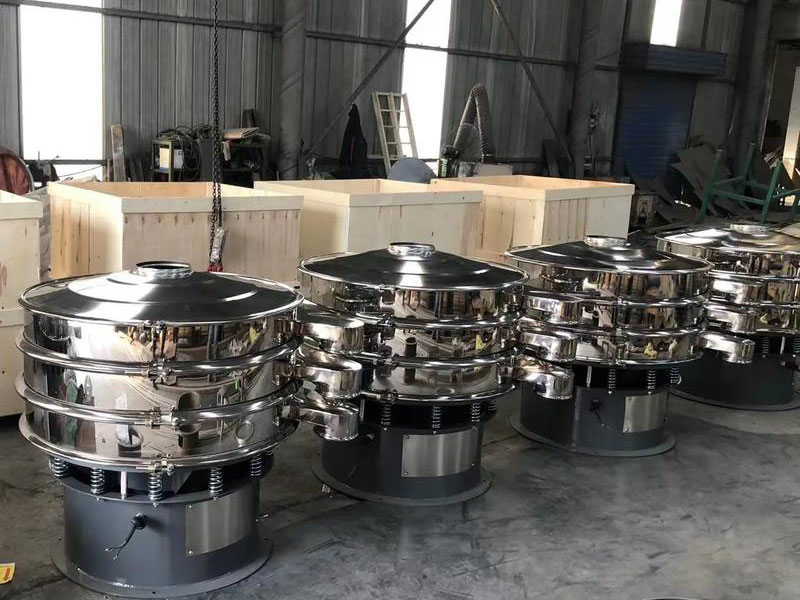

ZS-Circular oscillating sieve
The circular oscillating screen consists of a hopper, an oscillating chamber, a coupling and a motor. The oscillation chamber is composed of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is transmitted to the center line of the main shaft through motor drive, which generates centrifugal force under unbalanced conditions, changes the strength of the material and forms an orbital vortex in the screen.
overview
This machine consists of hopper, oscillation chamber, coupling and motor. The oscillation chamber is composed of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is transmitted to the center line of the main shaft through motor drive, which generates centrifugal force under unbalanced conditions, changes the strength of the material and forms an orbital vortex in the screen. The amplitude of the weight adjuster can be adjusted according to different materials and screens. The whole machine has compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.
technical specifications
| model | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Production capacity (kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| sieve mesh | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Motor power (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Spindle speed (rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Overall size (mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| Net weight (kg) | 100 | 180 | 250 | 300 | 350 | 400 |
