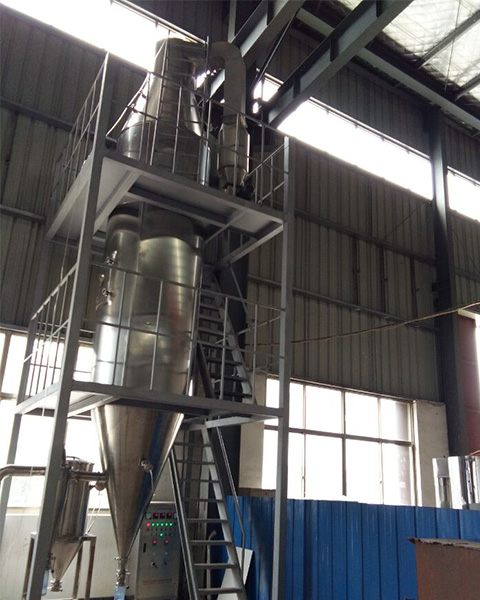

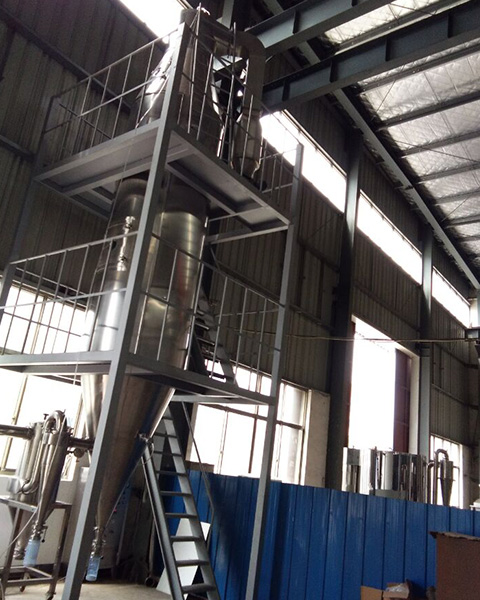

YPG-Pressure spray dryer
YPG-Pressure spray dryer
LPG Model Centrifugal Atomizer Type Industrial Food Spray Dryer
Spray Dryer Equipment Supplier And Manufactures
Fob Price：USD9000~USD300000
Supply Ability：5 sets / month
Mini Quantity：1 set
Port: Shanghai Port
Payment Terms：T/T, L/C at sight
Size：Different size according to the machine
Material：Stainless steel, Carbon steel
Clients:□supplier ▲manufacturer ▲company ▲factory ▲distributor ▲agent ▲final user
product introduction
This unit is a device that can simultaneously complete drying and granulation. The pressure, flow rate and nozzle size of the feed liquid pump can be adjusted according to process requirements to obtain the required spherical particles in a certain size ratio.
working principle
The working process of this unit is that the feed liquid is input at high pressure through a diaphragm pump, sprayed out mist droplets, and then fell in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower. The waste gas and its tiny powder are separated by a cyclone separator. The waste gas is discharged by an exhaust fan, and the powder is collected by a pollination cylinder installed at the lower end of the cyclone separator. The outlet of the fan can also be equipped with a secondary dust removal device, with a recovery rate of more than 96-98%.

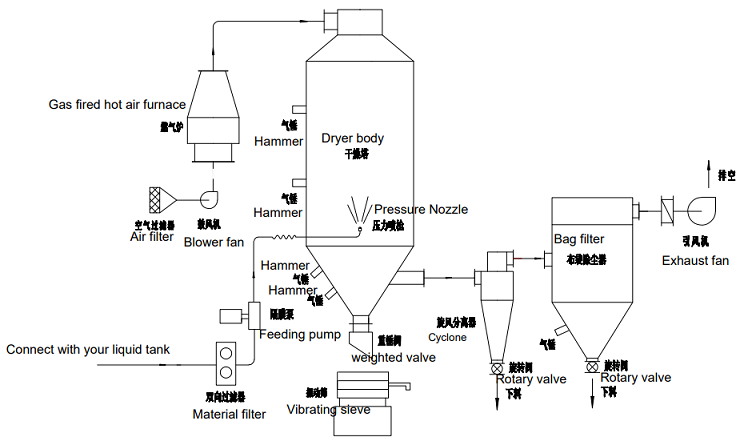

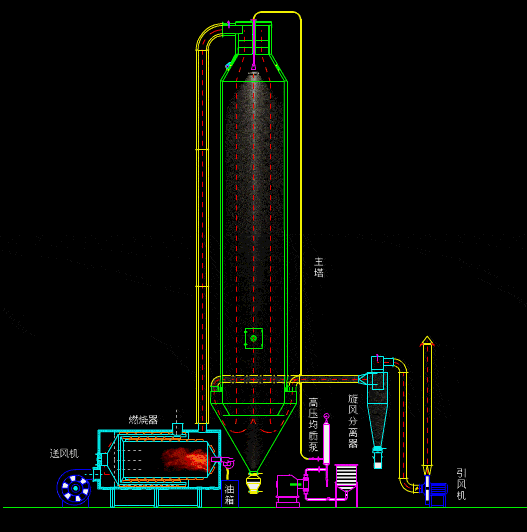

schematic structural diagram
performance characteristics
◎ The drying speed is fast. The surface area of the feed liquid is greatly increased after being atomized. In the hot air flow, 95%-98% of the water can be evaporated instantly. The drying time only takes ten seconds to tens of seconds. It is especially suitable for drying heat-sensitive materials.
◎ All products are spherical particles with uniform particle size, good fluidity, good solubility, high product purity and good quality.
◎ Wide range of use. According to the characteristics of the material, it can be dried with hot air or granulated with cold air, which has strong adaptability to the material.
◎ Simple and stable operation, convenient control, and easy to realize automated operations.
Adapt materials
Spray dried granules:
◎ Chemical industry: There are catalysts, resins, synthetic washing powders, oils, ammonium sulfate, dyes, dye intermediates, white carbon black, graphite, ammonium phosphate, etc.
◎ Food: amino acids and analogues, seasonings, protein, starch, dairy products, coffee extracts, fish meal, meat essence, etc.
◎ Pharmaceutical: Chinese patent medicines, pesticides, antibiotics, pharmaceutical granules, etc.
◎ Ceramics: magnesium oxide, porcelain clay, various metal oxides, dolomite, etc.
◎ Spray granulation: various fertilizers, alumina, ceramic powder, pharmaceuticals, heavy metals and superhard steel, chemical fertilizers, granular washing powder, and proprietary Chinese medicines.
◎ Spray cooling granulation: amino fatty acids, paraffin wax, glyceride, tallow, etc. Spray crystallization, spray concentration, spray reaction and other aspects are often used.
technical specifications
| model | units | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| water evaporation | kg | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Overall size (Φ ×H) | mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×1880 | 4600×22500 |
| High-pressure pump pressure | mPa | 2～10 | ||||||
| power | KW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| inlet air temperature | oC | 140～350 | ||||||
| water content of the product | % | <5(up to 0.5) | ||||||
| material recovery | % | ＞97 | ||||||
| electric heating | KW | 75 | 120 | 150 | When the temperature is lower than 200, the specific technology shall be based on actual technology | |||
| electricity adding steam | Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| hot blast stove | Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
★ The above evaporation amount is ^large evaporation amount.
Steel plate cutting →Steel plate bending →Welding→ Drilling → Polishing →Assembling
For each process, we required our workers to control the quality strictly according to ISO 9001-2008 and Process technology, so that we can get the quality machine of Customer satisfaction
Shipping & Customer Site:

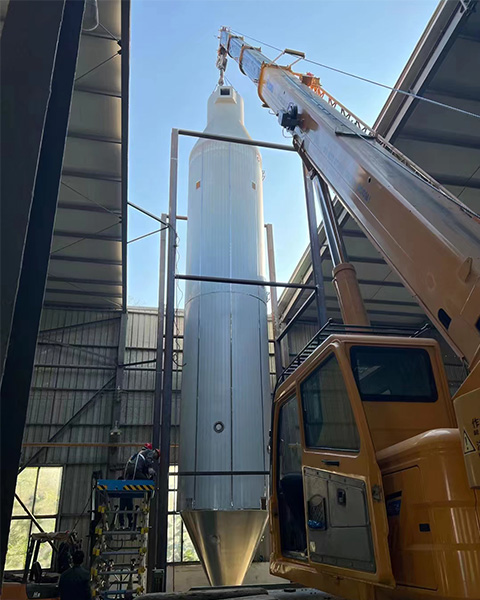

Our factory have more experience for shipping big spray dryer equipment by frame container, and guide installation and commissioning to customer local.
Our Spray dryer equipment have exported to worldwide, especially in Indonesia, Malaysia, Thailand, India, Iran, Syria, Saudi Arab, Korea, Russia, Uzbekistan, South Africa, Australia, New Zealand, Mexico, Columbia, Chile, Paraguay, Brazil, Argentina, Czech, Holland, and etc. Our main customer as follows:
Our Services:
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
OEM & ODM are available
Free parts for any breakdown with convincing eviden
Our Advantages:
1. High quality and 20 years experience professional manufacturer of Spray dryer equipment
2. Our factory is certificated by BV,GMC,TUV SGS
3. Our factory is certified by ISO9001:2008 & ISO14001:2004
4. Short lead time
5. Good after-sale service
6. Overseas guide installation and commissioning
FAQs:
1. Are you manufacturer or trading company?
We are manufacturer 20 years experience professional manufacturer of dryer equipment,mixer equipment,granulator equipment.
2. Where is your factory located?
Our factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to our factory is about 260Km,it need about 3 hours by car.
3. If can make a testing in your factory?
Sure,our factory have Spray dryer equipment for testing, you can take 5~10kgs raw material to our factory for testing.
4. How Can I select the right Spray dryer equipment ?
We will help you choose the right type and model for Spray dryer equipment, by knowing the following information:
a.> Liquid name and property: Solid contents(or water contents), viscosity , surface tension and PH value.
b.> Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.
c.> Output capacity: shift time daily .
d.> Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil and natural gas .
e.> Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric compnent brand require.
f.> Powder collection requirement: whether it’s necessary to use cloth bag ilter and the requirement of the environment of the exhausted gas .
g.> Other special requirements.
