product introduction

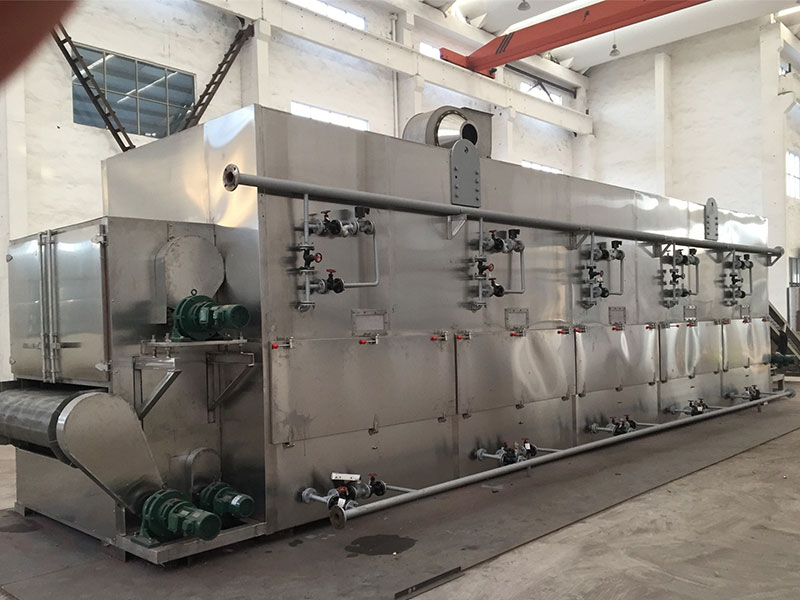

  This machine is a through-flow continuous drying equipment used for drying sheet, strip and granular materials with good air permeability. It is especially suitable for materials with high moisture content and high temperature such as dehydrated vegetables and Chinese herbal pieces; This series of dryers has the advantages of fast drying speed, high evaporation intensity, and good product quality. Dehydrated filter-cake-like paste materials can also be dried after being granulated or made into sticks.
performance characteristics
◎ You can adjust the amount of air, heating temperature, material retention time and feeding speed to achieve better drying results.
◎ The equipment configuration is flexible, and the mesh belt washing system and material cooling system can be used.
◎ Most of the air is recycled to save energy.
◎ The unique air distribution device makes the hot air distribution more uniform and ensures the consistency of product quality.
◎ The heat source can be steam, heat-conducting oil, electricity or coal-fired (oil) hot-blast stove.
working principle

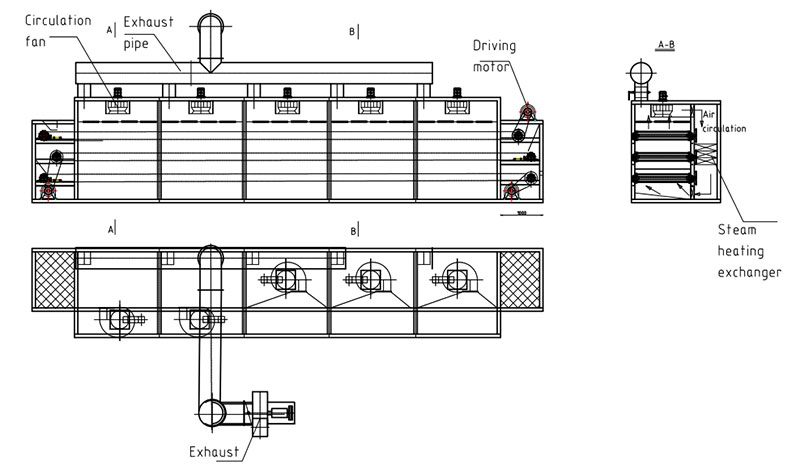

  The material is evenly spread on the mesh belt by the feeder. The mesh belt generally uses 12-60 mesh stainless steel wire mesh and is dragged by a transmission device to move in the dryer. The dryer consists of several units. Each unit circulates hot air independently, part of the exhaust gas is discharged by a special moisture removal fan, and the exhaust gas is controlled by a regulating valve. The hot air passes through the mesh belt covered with materials from bottom to top or from top to bottom to complete the process of heat and quality transfer, taking away the moisture of the material. The mesh belt moves slowly, and the running speed can be freely adjusted according to the material temperature. The dried finished products continue to fall into the receiver. Upper and lower circulation units can be flexibly equipped according to user needs, and the number of units can also be selected according to needs.
Adapt materials
  Dehydrated vegetables, pellet feed, monosodium glutamate, mashed coconut, organic pigments, synthetic rubber, propylene fiber, medicines, medicinal materials, small wood products, plastic products, electronic device-free aging, curing, etc.

technical specifications
