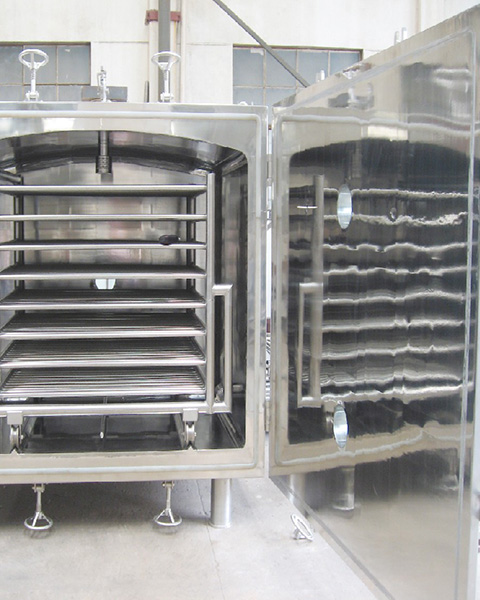

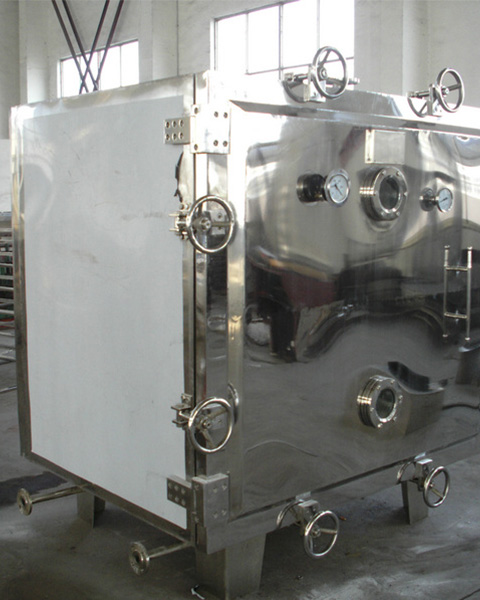

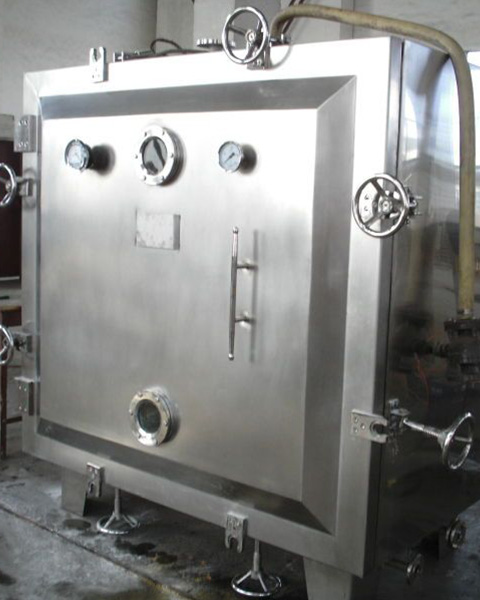

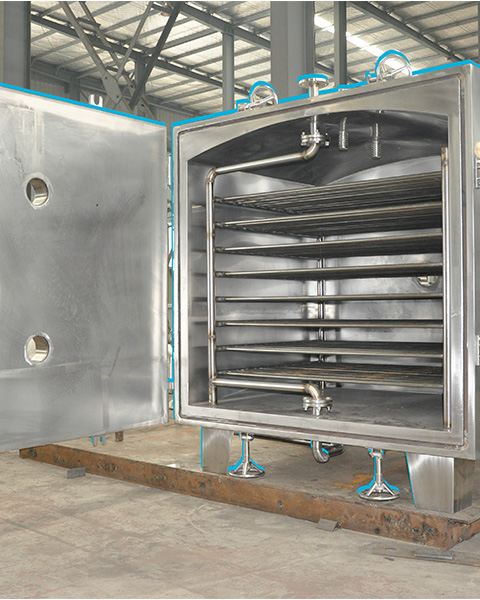

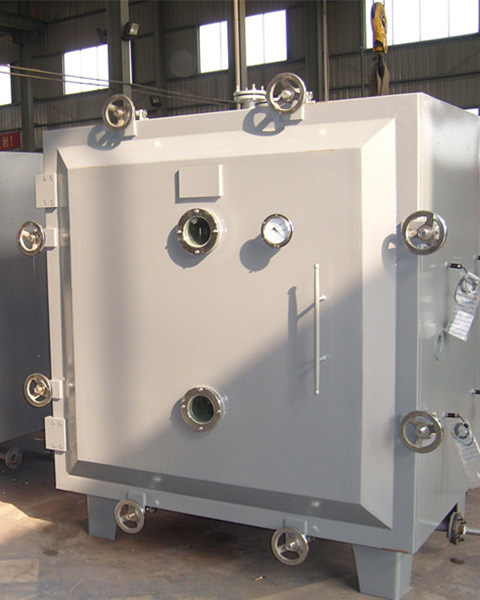

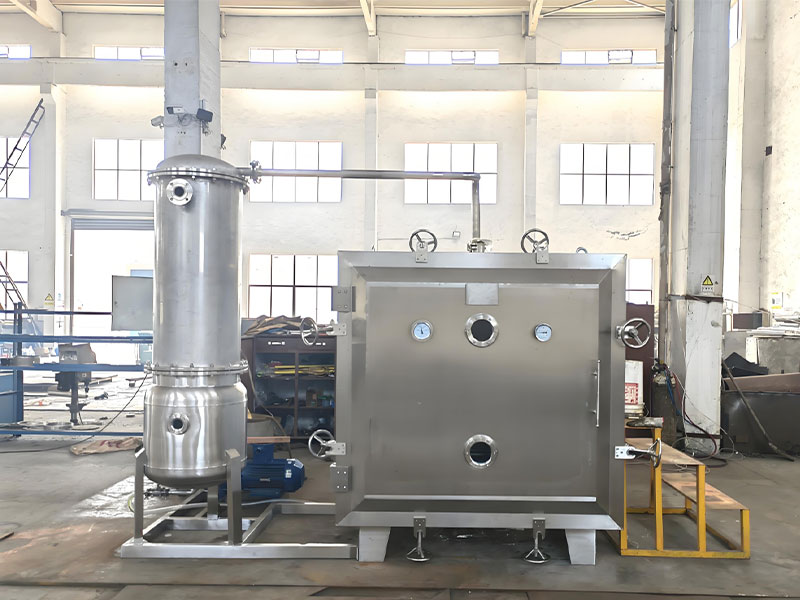

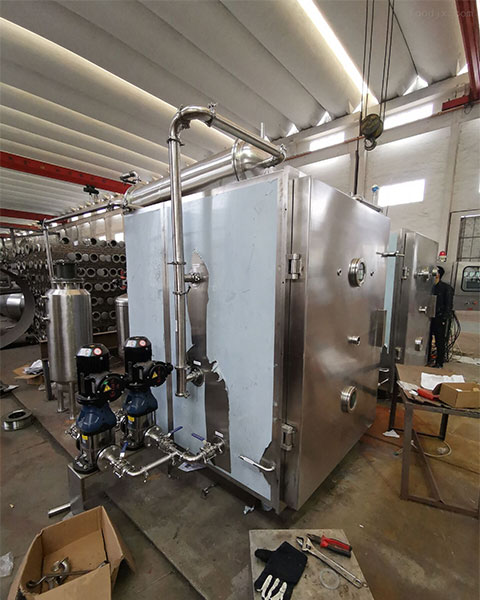

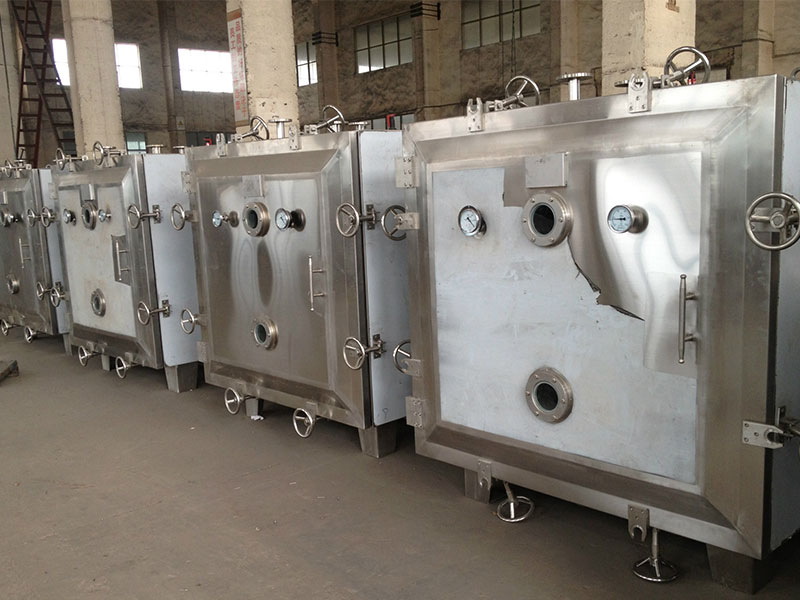

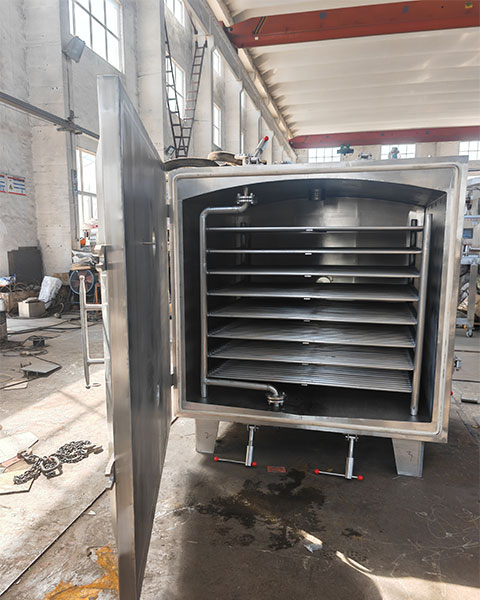

FZG-Square static vacuum dryer
working principle
The so-called vacuum drying means heating and drying the dried material under vacuum conditions. If a vacuum pump is used for air extraction and humidity removal, the drying speed is accelerated.
Note: If condenser is used. The solvent in the material can be recovered through a condenser. If the solvent is water, the condenser can be eliminated, saving energy investment.
performance characteristics
◎ The boiling point of the material solution decreases under vacuum. Increase the heat transfer driving force of the evaporator. Therefore, the heat transfer area of the evaporator can be saved for a certain heat transfer amount.
◎ The heat source for evaporation operation can use low-pressure steam or waste heat steam.
◎ The evaporator has less heat loss.
◎ Disinfection treatment can be carried out before drying. No impurities will be contaminated during the drying process, which meets GMP requirements.
◎ It belongs to a static vacuum dryer. Therefore, the shape of the dried material will not be damaged.
Adapt materials
It is suitable for low-temperature drying of heat-sensitive materials that are easy to decompose, polymerize and deteriorate at high temperatures; it is widely used in pharmaceutical, chemical, food, electronics and other industries.

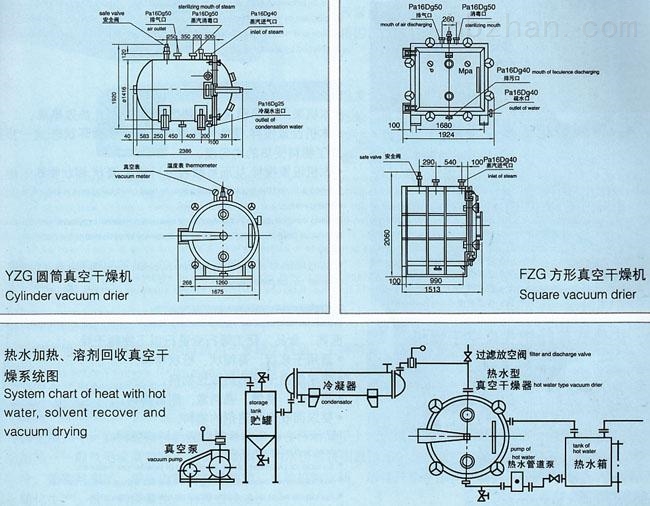

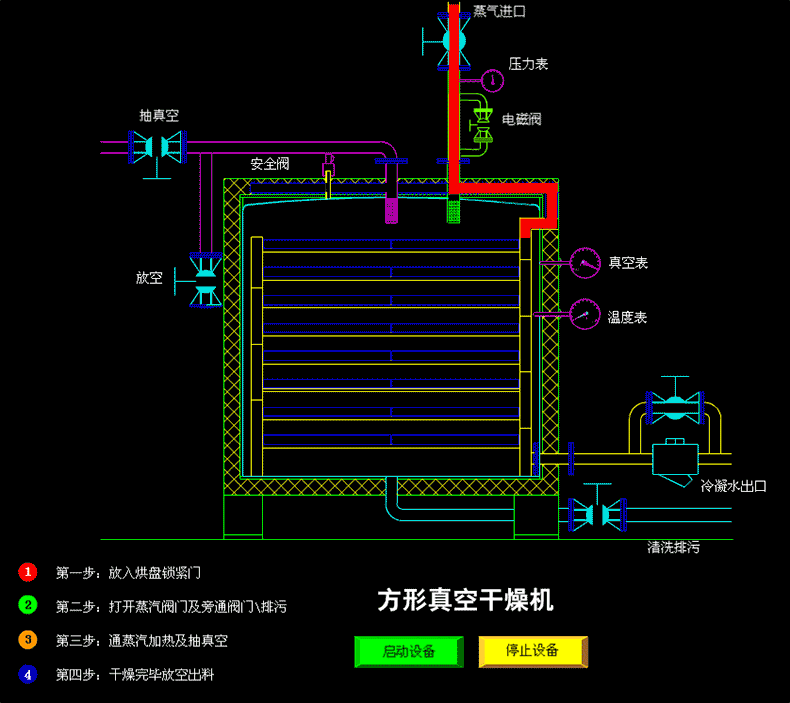

schematic structural diagram
technical specifications
| name/strength | FZG-10 | FZG-15 | FZG-20 |
| Inner size of drying box | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
| External size of drying box | 1513×1924×1720 | 1513×1924×2060 | 1513×1924×2500 |
| Number of drying racks | 5 | 8 | 12 |
| interlayer distance | 122 | 122 | 122 |
| drying pan size | 460×640×45 | 460×640×45 | 460×640×45 |
| Number of baking plates | 20 | 32 | 48 |
| Apply pressure in drying rack tube | ≤0.784 | ≤0.784 | ≤0.784 |
| Drying rack operating temperature | 35-150 | 35-150 | 35-150 |
| Empty vacuum in the box | -0.09～0.096 | ||
| At-0.1MPa, heating temperature 1100oC, the vaporization rate of water | 7.2 | 7.2 | 7.2 |
| When using condenser, vacuum pump model, power | 2X-70A / 5.5KW | 2X-70A / 5.5KW | 2X-90A / 2KW |
| When condenser is not used, vacuum pump model, power | SK-3 / 5.5KW | SK-6 / 11KW | SK-6 / 11KW |
| Weight of drying box | 1400 | 2100 | 3200 |
Note: Water ring vacuum pump is used in conjunction with mechanical booster to improve vacuum.
Order Instructions
◎ When ordering, please select the appropriate vacuum dryer based on factors such as the physical properties of the dried material, initial moisture content, final moisture content, temperature, vacuum degree, drying volume, drying time, etc. There are four heating methods in the same type of vacuum dryer: steam, hot water, heat transfer oil, electric heating. For example, in order to increase the drying capacity, you can appropriately increase the number of drying frames, please submit it to our factory in time.
◎ We can provide and install the accessories in the vacuum drying system mentioned in the instructions for use. Please explain when ordering.
◎ Our company can provide design, manufacturing and installation for special requirements in vacuum drying systems put forward by users.
◎ Our equipment implements three quality guarantees for users. All accessories will be provided for a long time, please rest assured.
