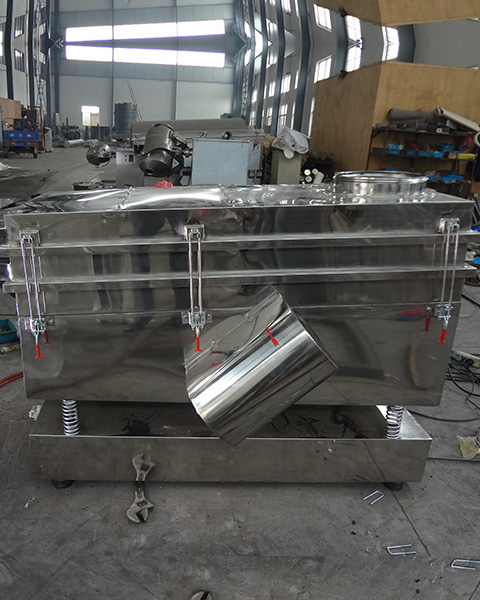

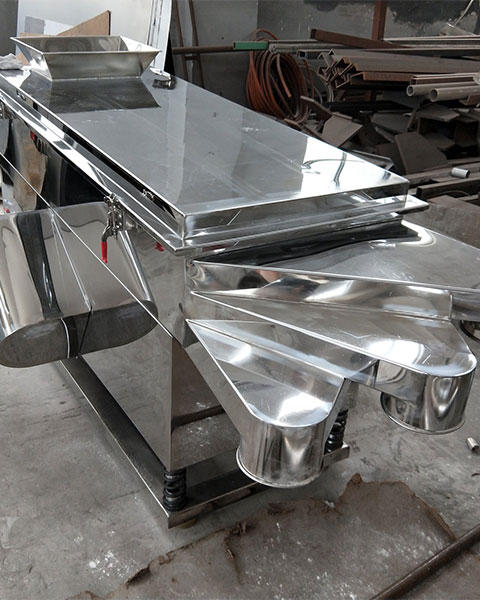

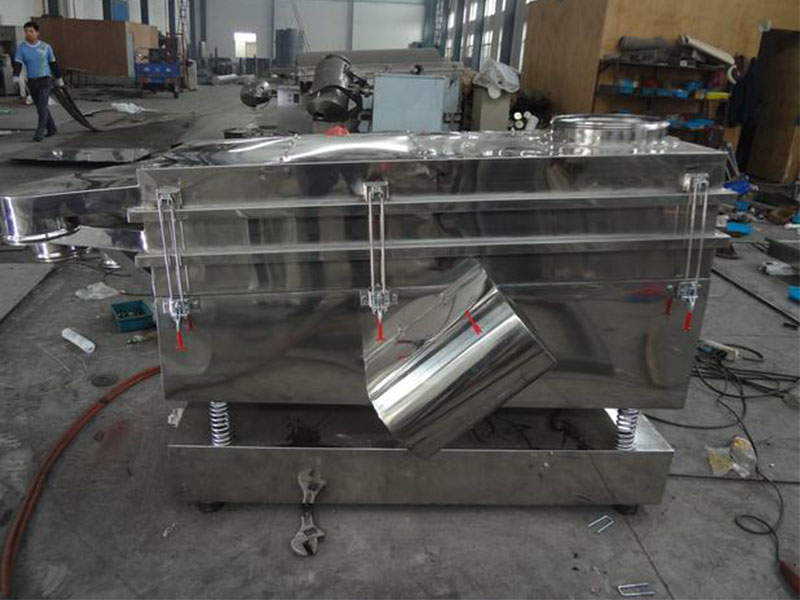

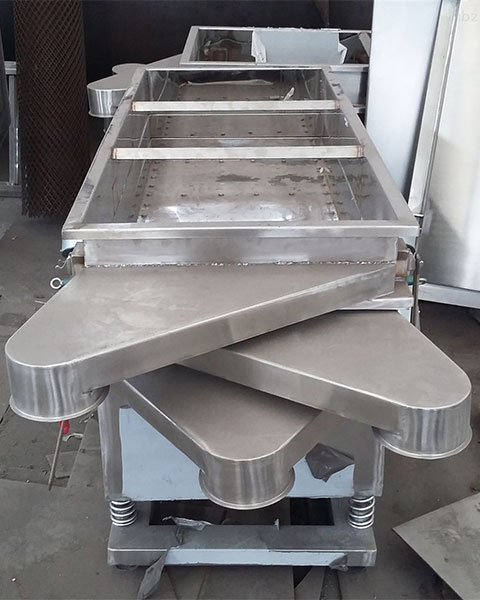

FS-Square oscillating screen

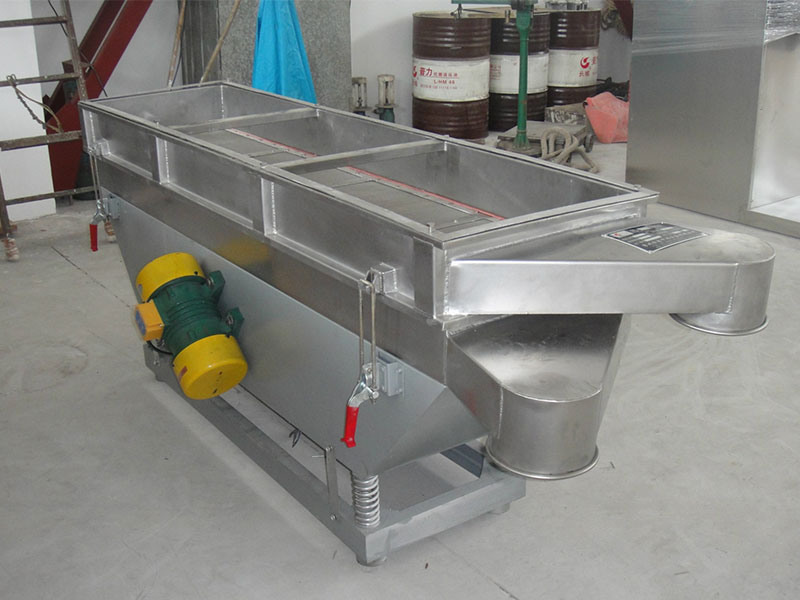

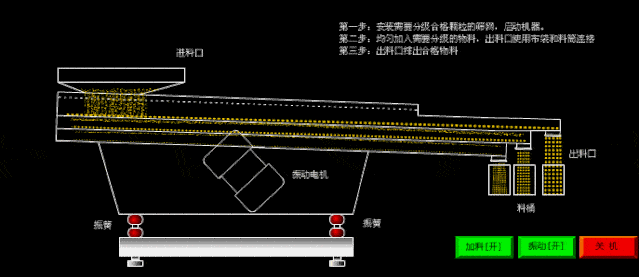

The square oscillating screen is composed of three major components: a material inlet and outlet screen box, a vibration source and a shock absorber. The base and the sieve box are connected with 4-6 groups of soft rubber shock absorbers that are fixed up and down. Centrifugal force is generated when starting up. The amplitude is controlled by eccentric blocks and shock absorbers, so as to achieve the required good working performance and ensure that the material has a throwing and loosening screening process.
overview
The machine is composed of three major components: inlet and outlet screen box, vibration source and shock absorber. The base and the sieve box are connected with 4-6 groups of soft rubber shock absorbers that are fixed up and down. Centrifugal force is generated when starting up. The amplitude is controlled by eccentric blocks and shock absorbers, so as to achieve the required good working performance and ensure that the material has a throwing and loosening screening process. Ideal equipment widely used in pharmaceutical, food, chemical, metallurgical, electronics and other industries.
technical specifications
| model | production capacity （kg/h） |
sieve mesh (mesh) |
motor power (kw/h) |
vibration frequency (r/min) |
exciting force (kN) |
Upper exit height | Middle exit height | Lower outlet height | Overall size (L×W×H) |
net weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 | 1300×770 ×1060 |
220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 | 1700×680 ×1100 |
280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 | 1600×830 ×1150 |
320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 | 1900×980 ×1220 |
450 |
