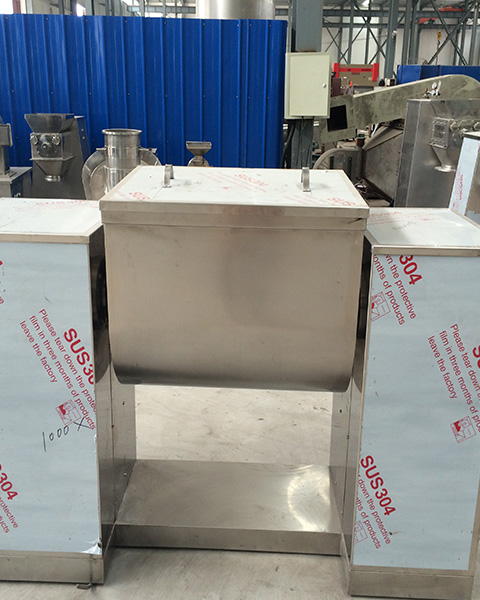

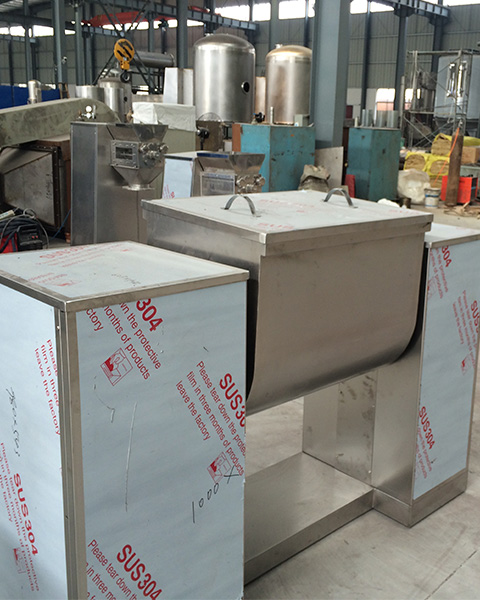

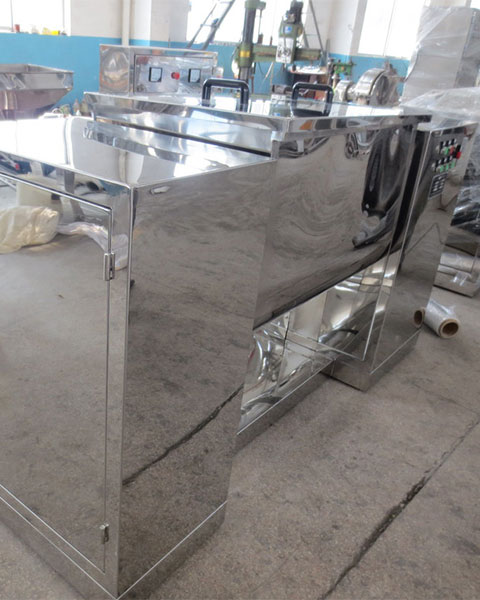

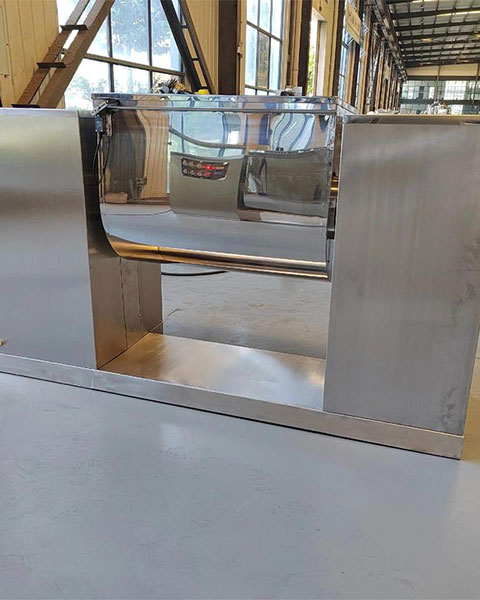

CH-trough mixer

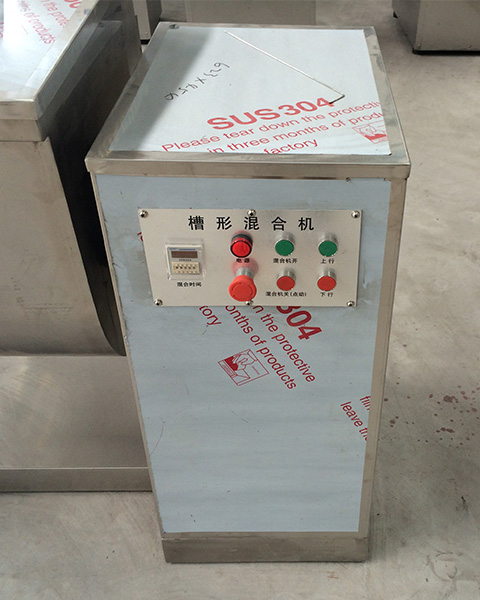

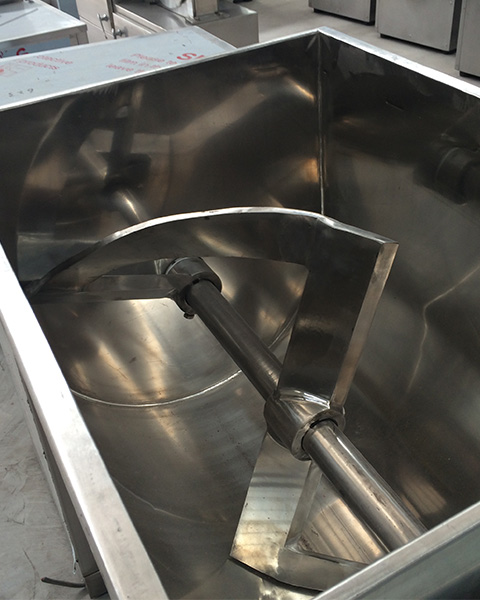

The trough mixer is used to mix powdery or wet materials to mix the main and auxiliary materials in different proportions evenly. The contact points between the machine and the material are made of stainless steel. The gap between the paddle blades and the barrel body is small, and there is no dead corner in mixing. Sealing devices are provided at both ends of the mixing shaft to prevent the material from leaking out. The hopper is controlled by button actuation, making it convenient to discharge.
product introduction
Used for mixing powdery or wet materials to mix the main and auxiliary materials in different proportions evenly.
performance characteristics
◎ The contact points between the machine and the material are made of stainless steel. The gap between the blades and the barrel body is small, and there is no dead corner in mixing. Sealing devices are provided at both ends of the stirring shaft to prevent the material from leaking out.
Adapt materials
Widely used in pharmaceutical, chemical, food and other industries.
technical specifications
| Capacity (L) | 100 | 150 | 200 | 400 |
| Motor power (kw) | 2.2 | 3 | 3 | 5.5 |
| Stirring speed (rpm) | 24 | 24 | 24 | 24 |
| Pouring angle (×) | 105 | 105 | 105 | 105 |
| Weight (kg) | 350 | 500 | 650 | 1200 |
| Exterior size (mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
