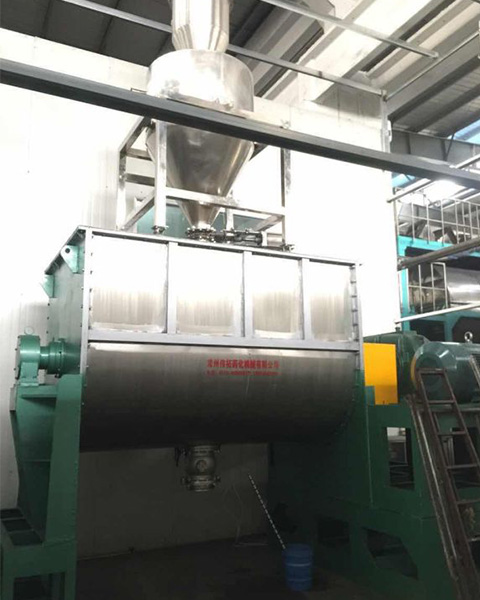

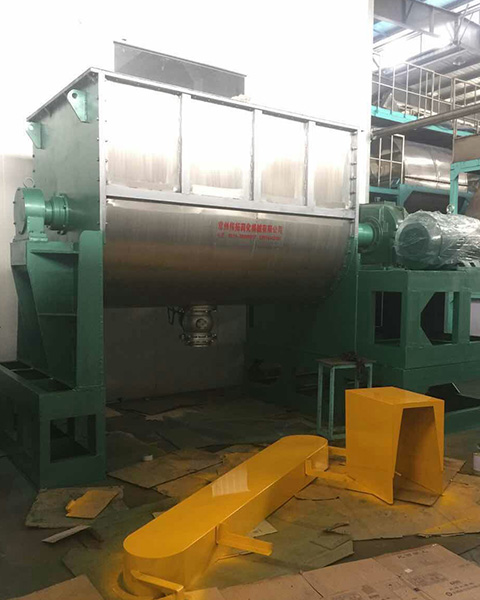

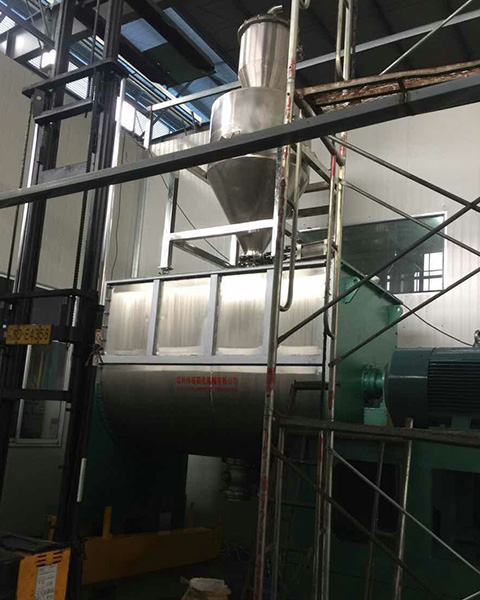

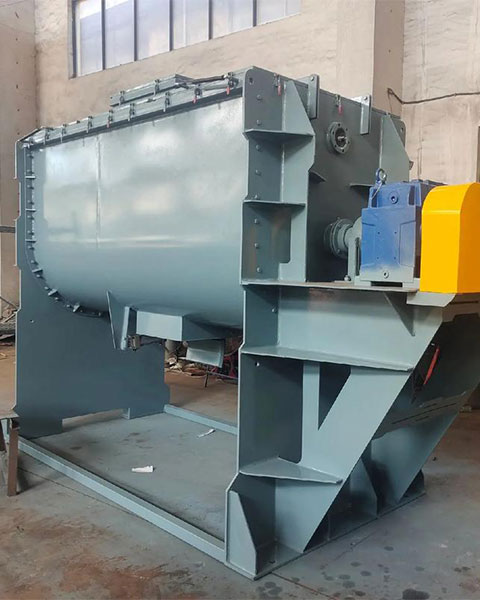

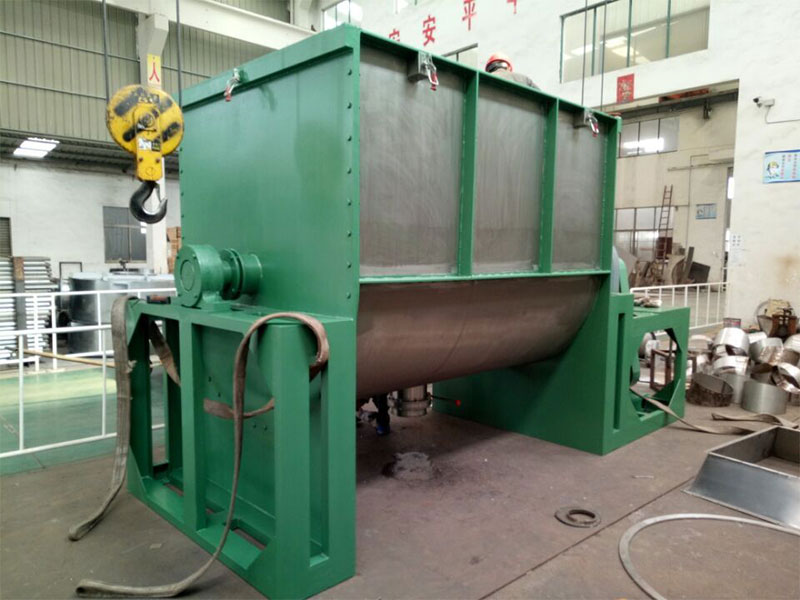

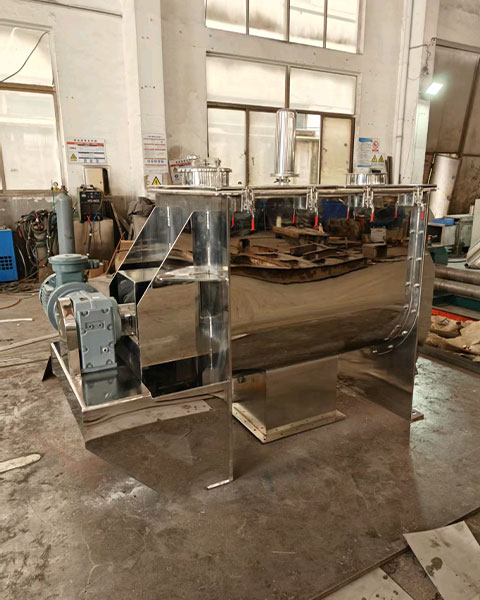

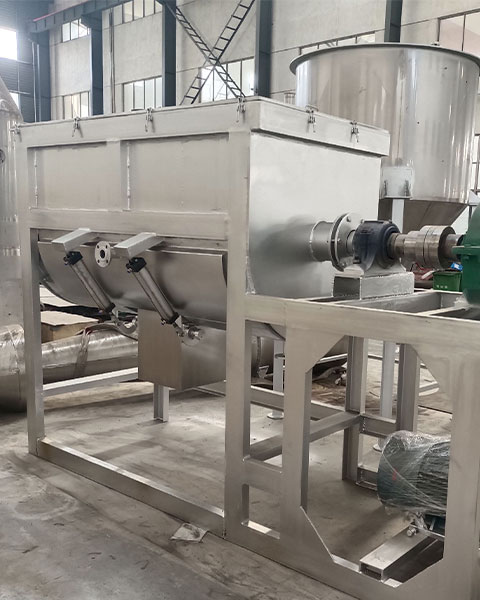

WLDH-Horizontal Spiral Belt Mixer
working principle

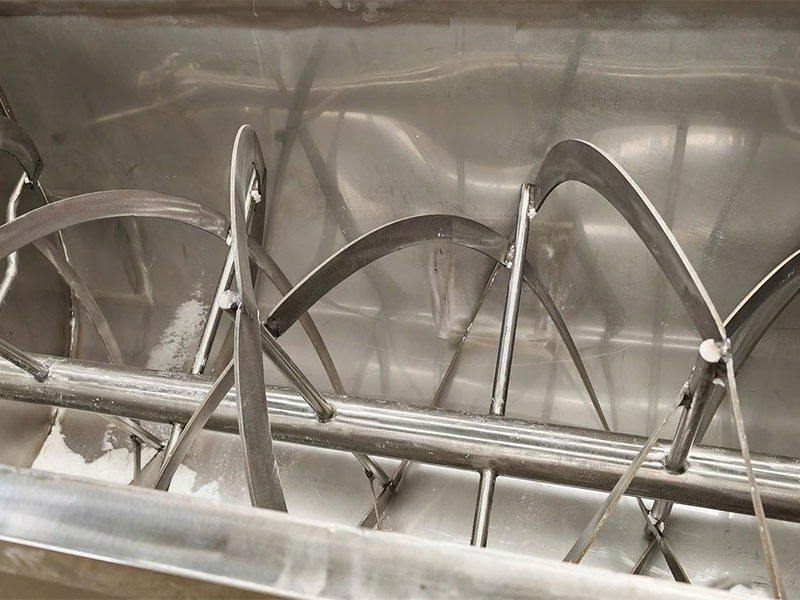

This model consists of a container, spiral stirring blades and transmission parts: the spiral blades are generally made of double or triple layers, the outer spiral collects materials from both sides to the center, and the inner spiral conveys materials from both sides of the center, forming convective mixing.
performance characteristics
◎ Large loading factor and small equipment floor area:
◎ Cleaning is difficult when mixing viscous or cohesive materials.
Adapt materials
◎ Spiral tape mixers are generally used for mixing viscous or cohesive powder and particles, as well as mixing liquids and paste materials added to the powder and particles. At the same time, due to the difficulty in cleaning viscous materials, they are suitable for large yields and infrequent replacement of varieties. Mixing occasion.
technical specifications
| model and specification | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| Single mixing (kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Motor power (kg) | 1.5-4 | 3-3.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 37-55 |
| Equipment weight (kg) | 300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 | 6800 | 7800 |
Note: The above product materials are divided into carbon steel C and stainless steel P.
