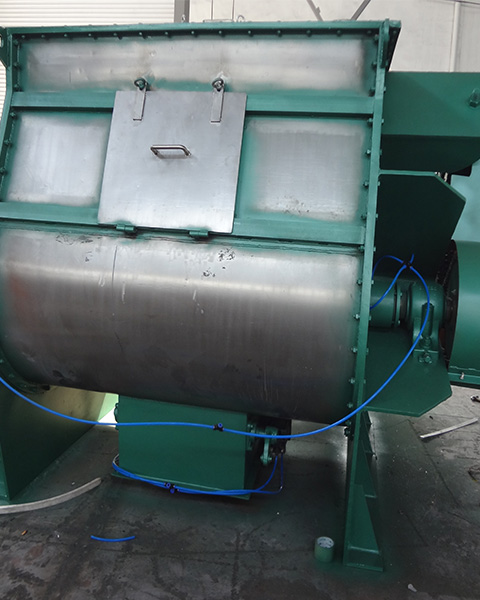

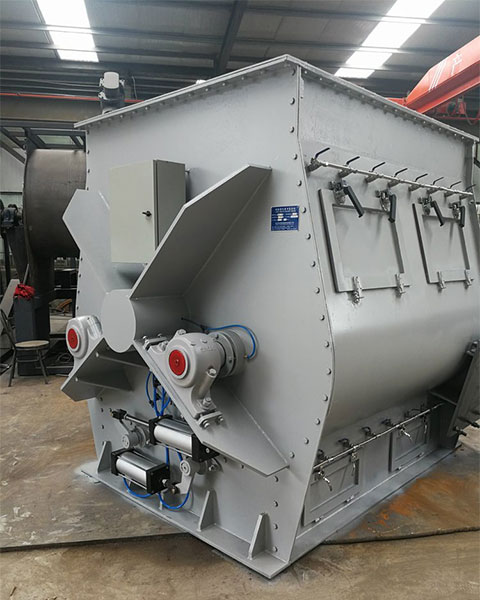

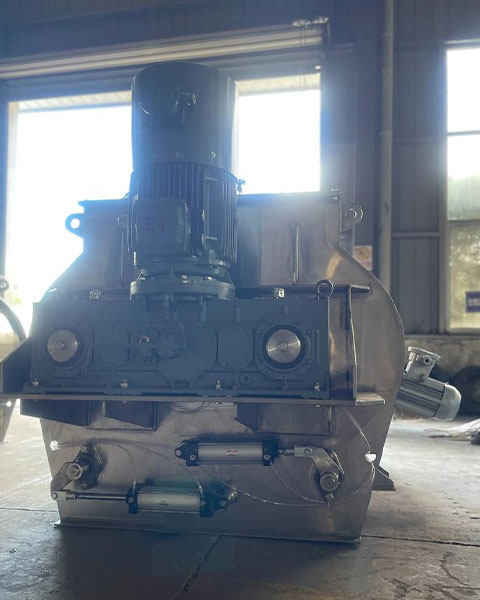

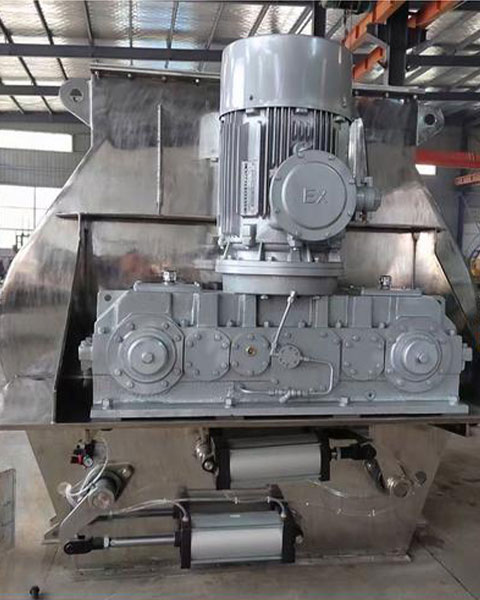

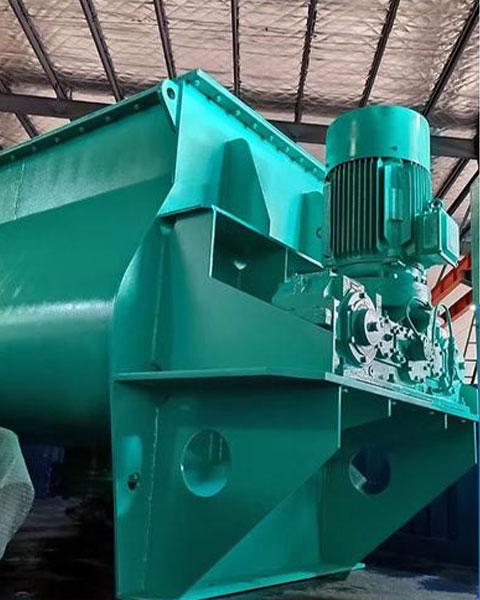

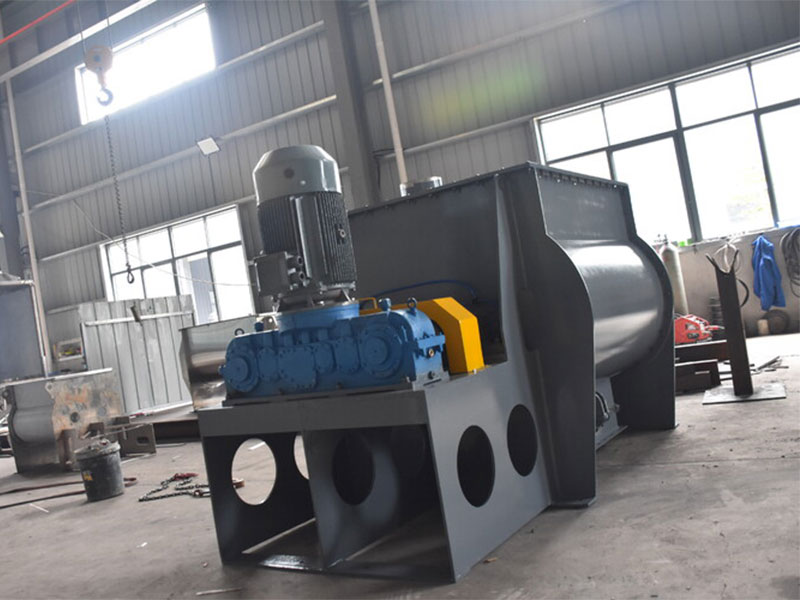

WZ-Gravity Free Mixer
working principle

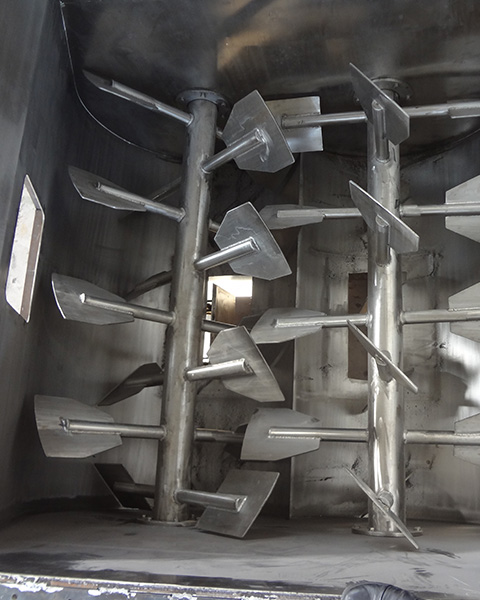

This series of mixers is characterized by intense and efficient mixing. The two mixing machines in the horizontal cylinder rotate at a constant speed and in reverse direction. Specially arranged blades ensure that the material moves in three directions, radial, circumferential and axial directions, forming a compound cycle and achieving uniform mixing in an extremely short period of time.
product features
1. High mixing precision, fast speed, low energy consumption, and sealing operation.
2. Pneumatic, electric and manual discharge methods.
3. An atomizing device can be arranged on the cylinder cover to achieve solid-liquid mixing.
application range
Chemicals, detergents, coatings, resins, glass silicon, pigments, pesticides, fertilizers, feeds, feed additives, wheat flour, milk powder, spices, trace ingredients, coffee, salt, additives, plastics and various slurries and powders. Drying and mixing.
technical specifications
| model and specification | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
| Single mixing kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Installed power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
| Equipment weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
