product introduction
  The machine adopts a fully enclosed form, all components are made of stainless steel, and is equipped with a three-level purification device. The filtered air reaches the requirements of 100,000 levels. The cylinder body and top are equipped with cold wall devices to keep the wall temperature less than 80℃, and an air brush tower sweeping device is installed in the drying tower. The traditional Chinese medicine extract powder dried by this machine will not appear coking and deterioration, greatly increasing the powder recovery rate (more than 95%), and will not occur drug mixing and wall sticking.

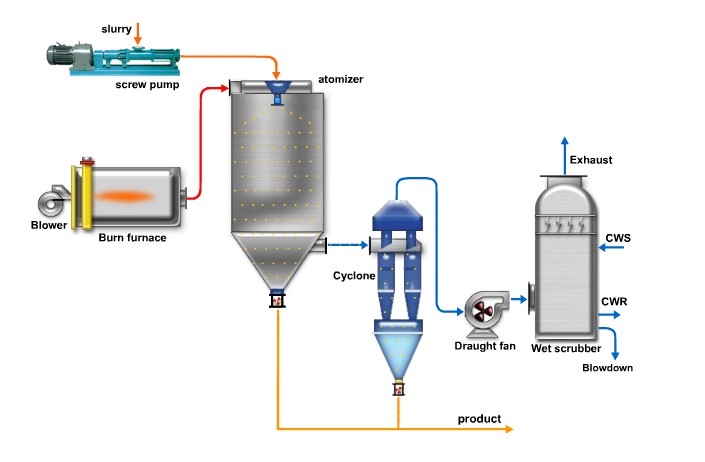

working principle
  The high-speed centrifugal spray device for traditional Chinese medicine extract is the application of centrifugal spray drying technology in the drying of specific materials. It also uses a high-speed centrifugal atomizer to disperse the materials into a mist and fully contact with hot air to complete instant drying and form a powdery finished product. Drying device.

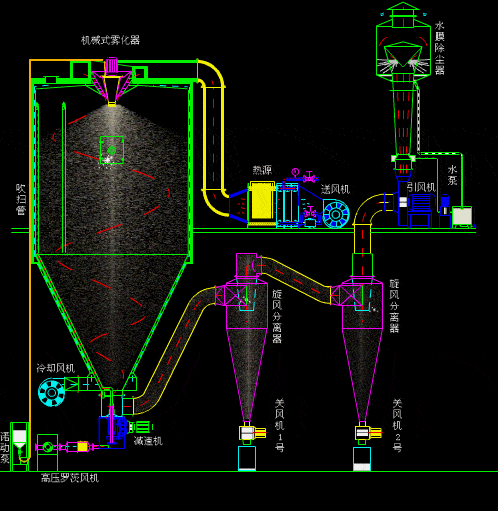

schematic structural diagram

performance characteristics
◎ The tower body has a cold wind jacket;
◎ The tower body is equipped with an automatic rapping device;
◎ The tower body and pipelines are equipped with quick-opening cleaning holes and sewage discharge holes;
◎ Can be equipped with automatic control constant temperature feeding tank;
◎ Can be equipped with manual high-pressure washing tower random accessories;
◎ The part in contact with the material is made of stainless steel;(or made of all stainless steel);
◎ Material collection adopts two-stage cyclone dust remover, or one-stage
◎ Cyclone dust collectors and wet dust collectors;
◎ Automatic control and continuous device for inlet air temperature.
◎ Gas sweeping device can be equipped.

technical specifications

Note: ★ The actual external size can be determined according to the actual situation of the customer. The above size is for reference only. 
   ★ The above evaporation amount is ^large evaporation amount.
